Full excavation and rubberized membrane protection that addresses water at its point of entry, before it ever reaches your basement wall.
Exterior foundation waterproofing is the only method that directly interrupts the path water travels from saturated soil to basement interior, and that interruption is made permanent through a combination of membrane application, drainage board installation, and footing pipe placement. The excavation required to accomplish this is substantial, involving the removal of soil from the surface to the footing elevation along the affected foundation sections. For most West Chicago homes, this means a trench four to eight feet deep depending on foundation type and depth, wide enough to allow membrane application and drainage board placement by the installation crew.

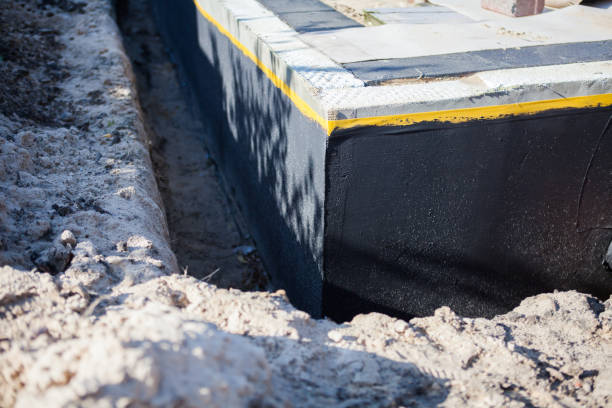

Once the foundation wall is exposed, any existing deteriorated coatings, efflorescence, or cracked parging are removed to create a clean, stable substrate. Cracks in the foundation wall itself are filled and surface-prepped before any waterproofing material is applied. The primary waterproofing layer for most West Chicago applications is a rubberized asphalt membrane applied by roller or spray to the cleaned wall surface. This material bonds directly to masonry or poured concrete, bridging hairline cracks and micro-fissures that would otherwise serve as water entry pathways. The membrane is applied in multiple passes to achieve a specified minimum thickness, and the material's flexibility accommodates the minor seasonal movement that occurs in West Chicago, IL soil conditions without cracking or delaminating.
Drainage board, sometimes called dimple board or dimple mat, is installed over the cured membrane to create a capillary break between the waterproofed wall surface and the surrounding soil. This profiled plastic sheet holds the soil away from the membrane surface and channels any water that migrates through the soil downward to the footing drain rather than allowing it to accumulate against the wall. The dimple profile creates a continuous air gap that eliminates the direct hydraulic contact between saturated soil and the foundation surface. At the base of the excavation, a perforated footing drain pipe is laid in a gravel bed alongside the footing, collects the water directed downward by the drainage board, and conveys it to daylight or to a sump pit inside the structure.
Seasonal timing for exterior waterproofing in West Chicago is often a question homeowners raise during the assessment. While spring and fall are typically optimal in West Chicago, IL climates for this type of work, late summer installations are also common and effective when the excavation conditions and membrane cure windows align. We monitor extended forecasts when scheduling exterior projects and build adequate cure time into the project timeline before backfill begins. Winter work is evaluated on a case-by-case basis depending on frost depth, ground conditions, and the urgency of the moisture problem. We are transparent about seasonal limitations and advise homeowners accurately rather than scheduling work that conditions do not support.
Exterior waterproofing represents a significant investment compared to interior drainage solutions, and homeowners in West Chicago reasonably ask whether the cost is justified for their specific situation. The honest answer depends on the source and severity of moisture entry, the foundation type, and the long-term goals for the space. In cases where water is entering through the wall itself due to hydrostatic pressure or deteriorated original waterproofing, exterior treatment addresses the cause rather than managing the symptom. Interior drainage systems are valuable tools in many situations, but they do not treat the wall surface or reduce hydrostatic pressure against the foundation. For homes in West Chicago where the foundation is sound but the original exterior waterproofing has aged out, a re-application of exterior membrane can extend the foundation's protection for decades. We provide assessments that document the actual conditions and recommend the approach best suited to those conditions, not the most expensive option available.
Excavation expertise, proven materials, and a warranty that means something.
Excavation to footing level is non-negotiable for effective exterior waterproofing. We do not offer partial-depth options that leave untreated wall area below grade.
The membrane we specify is rated for continuous soil contact, remains flexible across West Chicago, IL temperature ranges, and bridges existing micro-fissures in the foundation surface.
We stand behind the work we perform in West Chicago with written documentation of what is covered, for how long, and how to make a claim if needed.
Every service performed to current waterproofing industry standards.
Complete excavation, membrane application, drainage board installation, and footing pipe for the full foundation perimeter. The comprehensive solution for persistent moisture intrusion in West Chicago homes.
Learn moreWe document which sections show evidence of active moisture entry and design targeted scopes that address the actual problem areas rather than defaulting to full perimeter work where it is not needed.
Get an assessmentSurface preparation, crack repair, and re-application of current-generation rubberized membrane over aged original coatings restores exterior protection at a fraction of total foundation replacement costs.
Schedule a reviewThe footing pipe and drainage board are the components that keep the membrane working as designed by eliminating hydrostatic pressure buildup at the wall base.
Learn about drainageBasement window wells in West Chicago homes are a common point of exterior water entry. Proper well drainage, liner installation, and connection to the perimeter footing pipe prevents well overflow from reaching window openings.
Address window wellsBackfill compaction, surface grade correction to direct water away from the foundation, and landscape restoration are included in our West Chicago exterior waterproofing projects.
See full scopeA clear, documented process with no hidden steps.
Site evaluation covers soil type, existing drainage, foundation material, and any evidence of prior waterproofing.
Full excavation to footing depth along affected wall sections exposes the foundation surface for prep and membrane work. All excavated material is staged for controlled backfill.
Wall prep, crack filling, rubberized membrane application, drainage board installation, and footing pipe placement are completed in sequence with cure time observed before backfill.
Landscape restoration and grade verification complete the project before final documentation is provided to the homeowner.
Words from customers after their first full wet season with exterior waterproofing in place.
After 12 years of dealing with wall seepage in our older home in West Chicago, the exterior waterproofing finally eliminated it. The technician explained exactly why the interior approaches were only managing the water rather than stopping it, and the exterior project confirmed that assessment.
The excavation was significant work but the team was organized and efficient. They staged the soil carefully, worked methodically around the foundation, and restored the grade correctly at the end. The detailed written scope before the project started meant I knew exactly what to expect at each stage.
Fair pricing for the scope of work involved. The assessment was detailed and the proposal broke down every line item. No surprises during the project and the crew left the site cleaner than they found it.
No vague promises, just accurate information about what exterior waterproofing delivers.
Exterior waterproofing excavation is the most disruptive type of foundation work performed on a residential property. The extent of disruption depends on what is adjacent to the affected wall sections. Established shrubs, trees, or hardscaping features within the excavation zone will likely need to be temporarily removed or may be permanently affected. We identify and document these impacts during the assessment phase so homeowners can plan for restoration. Lawns adjacent to the excavation typically recover within one to two growing seasons after proper backfill and grading. We do not minimize this aspect of the work, because setting accurate expectations upfront is essential for homeowner satisfaction with the project.
The comparison is not simply about which approach is better in the abstract; it is about which approach addresses the specific moisture entry mechanism present in your West Chicago home. Wall seepage that stains the middle of the block, migrates through cracks, or appears after saturation events is the profile that exterior waterproofing resolves most definitively. Floor-joint entry or seepage that follows the perimeter at the floor level responds better to interior channel systems. When both conditions are present, a combined approach is sometimes the most complete solution.
{Quality exterior waterproofing using modern rubberized membrane systems can protect a foundation for 20 to 30 or more years when properly installed on a well-prepared surface. The original factory-applied bituminous coatings used on homes built through the 1980s typically had a design life of 10 to 15 years under favorable soil conditions. Modern rubberized membrane materials are substantially more durable, maintain flexibility under soil movement and temperature cycling, and retain adhesion over extended periods. The key variable in longevity is surface preparation quality and membrane thickness applied; underprepared substrates and thin single-pass applications consistently underperform.|Longevity depends on the membrane product specified, surface prep quality, and subsequent drainage board and footing pipe function. When drainage board is properly installed and the footing pipe remains clear and functional, the membrane experiences minimal hydrostatic load because water is redirected before it can accumulate against the wall surface. Regular inspection of the exterior grade around the foundation and the footing drain outlet ensures the drainage system continues to function as designed over the years.}
For homeowners with active moisture problems in winter, we evaluate whether interim measures can stabilize the situation until conditions support exterior work. In some cases, temporary interior drainage can reduce immediate water damage risk while the exterior project is planned for spring. We are transparent about what winter conditions allow and advise accordingly rather than scheduling work that conditions do not support.
Resolving persistent basement moisture problems has a positive effect on property value in West Chicago's real estate market. A documented history of active basement water intrusion is a disclosure item that can complicate sales and reduce offers. A properly completed exterior waterproofing project, especially one backed by a written workmanship warranty, addresses that disclosure concern and demonstrates that a long-term solution is in place. The cost of restoration landscaping after the project is typically modest compared to the moisture damage risk eliminated and the buyer confidence created by a warranted waterproofing system.
We do not quote specific ROI percentages because every home and every market is different. What we do is document the specific risks of continued moisture intrusion in your West Chicago home and provide a clear picture of what exterior waterproofing addresses versus what it does not. Homeowners who understand both the protection provided and its limitations are consistently more satisfied with their investment than those who received oversimplified answers.
A site assessment costs you nothing and answers the question definitively. Call JCB Waterproofing and Construction to schedule.
